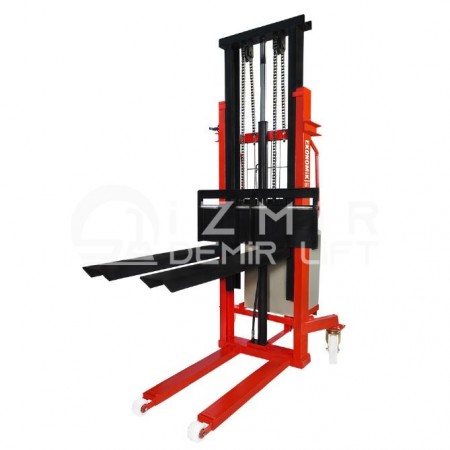

Ana Ürün Resmi - EKONOMİK LIFT YES1525 Semi Electric Stacker (1.5 Ton, 2.5 Mt)

EKONOMİK LIFT YES1525 Semi Electric Stacker (1.5 Ton, 2.5 Mt)

The EKONOMİK LİFT YES1525 Semi Electric Stacker is a reliable and effective option with a carrying capacity of 1.5 tons and a lifting height of 2.5 meters.
Kapasite: 1.5 Ton
Çatal Uzunluğu: 1150 mm
Operatör Tipi:Yaya
Garanti: 2 Yıl İzmir Demir Lift

The Reels Are Made of Cast Material.

Forks Can Be Manufactured As Fixed or Mobile



Semi Electric Stacker (1.5 Ton 2.5 M)

The Semi Electric Stacker (1.5 Ton 2.5 M) is designed to meet the needs of storage and stacking operations. There are different types of these machines available, and the EKONOMİK LİFT YES 1525 semi electric stacker is one of them. It has a lifting capacity of 1.5 tons and can lift loads up to 2.5 meters.



Constructed with a sturdy and reliable steel structure and rolled U-profile columns, this stacker ensures smooth and efficient lifting of loads. With the EKONOMİK LİFT YES 1525 semi electric stacker, you can perform vertical lifting and horizontal movements with ease. To lift heavy loads vertically, the operator simply needs to press the button on the control panel. Its compact design allows it to be used in tight spaces while delivering the desired results. It also features overload protection, quiet operation, and other characteristics that meet the expectations of users in terms of usability.



The semi electric stacker operates on a simple working principle and has a low failure rate, ensuring a long service life. Its compact design enables easy maneuverability, even in tight spaces. It is a necessary machine for areas where heavy loads are present.

Feature Value
Driving Type Manuel
Lifting Type Electric
Operating Voltage 220 Voltage- 380 Voltage
Capacity 1500Kg
Machine Lift Height 1600 Mm
Closed Height of the Machine 1800 Mm
Open Height of the Machine 2800 Mm
Machine Width 115 Cm
Fork Lenght 115 Cm
Fork Width 140 Mm
Forks Far Right / Far Left ( Overall Dimension) 90 Cm
Machine Weight 340 Kg.
Wheels Polyamide
Brake Manuel

Teknik Katalog

IDL-ET20P modelinin tüm detaylarını içeren kataloğu indirin.

İndir (PDF)
