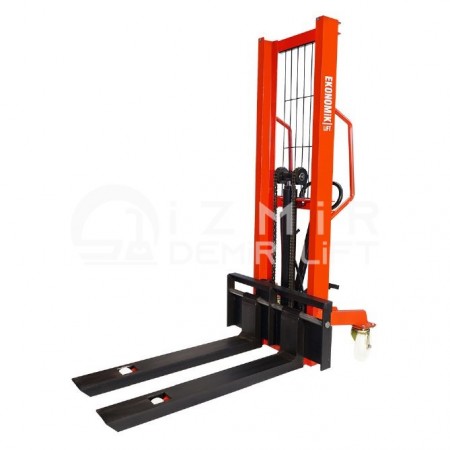

Ana Ürün Resmi - EKONOMİK LIFT MS1016 Manuel Stacker (1 Ton, 1.60 Mt)

EKONOMİK LIFT MS1016 Manuel Stacker (1 Ton, 1.60 Mt)

The ECONOMIC LIFT MS1016 Manual Stacker is a secure and durable option with a 1-ton load capacity and a height of 1.60 m. It features manual drive and lifting capabilities.
Kapasite: 1 Ton
Çatal Uzunluğu: 1150 mm
Operatör Tipi:Yaya
Garanti: 2 Yıl İzmir Demir Lift

The Reels Are Made of Cast Material.

Forks Can Be Manufactured As Fixed or Mobile.

THE PRODUCT IS MANUFACTURED TO BE CONVERTED TO THE ELECTRIC SYSTEM WHEN DEMANDED.



EKONOMIK LIFT MS1016 Manual Stacker (1 Ton 1.60 Mt)

A stacking machine, also known as a stacker, is used to move and transfer products on pallets horizontally and vertically, or to load them onto a vehicle. Manual stackers are operated by human power using a hydraulic mechanism.



The MS1016 Manual Stacker stands out among its counterparts with its 1000 kg lifting capacity, adjustable fork width, and durable body structure. It is equipped with cast iron wheels and Polyamide rollers to ensure comfortable use for the operator. Being our in-house production, it offers the advantage of customizable fixed or movable forks and can also be manufactured to be compatible with an electric system if desired.



Like all our products, this stacker comes with a 2-Year Technical Support Guarantee, CE Certification Approval, and Lifetime Spare Part Supply. If you are unsure whether this is the right product for your needs, you can contact our machine engineer, Mr. İhsan, for a consultation. Alternatively, you can explore other suitable products in our Manual Stackers category. To quickly get in touch with our machine engineer, Mr. İhsan, you can use the WhatsApp number provided at the bottom of the screen or visit the contact section on our website to reach out via your preferred communication channel.

Feature Value
Driving Type Manual
Lifting Type Manual
Capacity 1000 Kg
Machine Lift Height 1600 Mm
Closed Height of the Machine 2000 Mm
Machine Width 115 Cm
Fork Length 115 Cm
Fork Width 140 Mm
Forks Far Right / Far Left (Overall Dimension) 90 Cm
Machine Weight 230 Kg.
Wheels Polyamide
Brake Manuel
